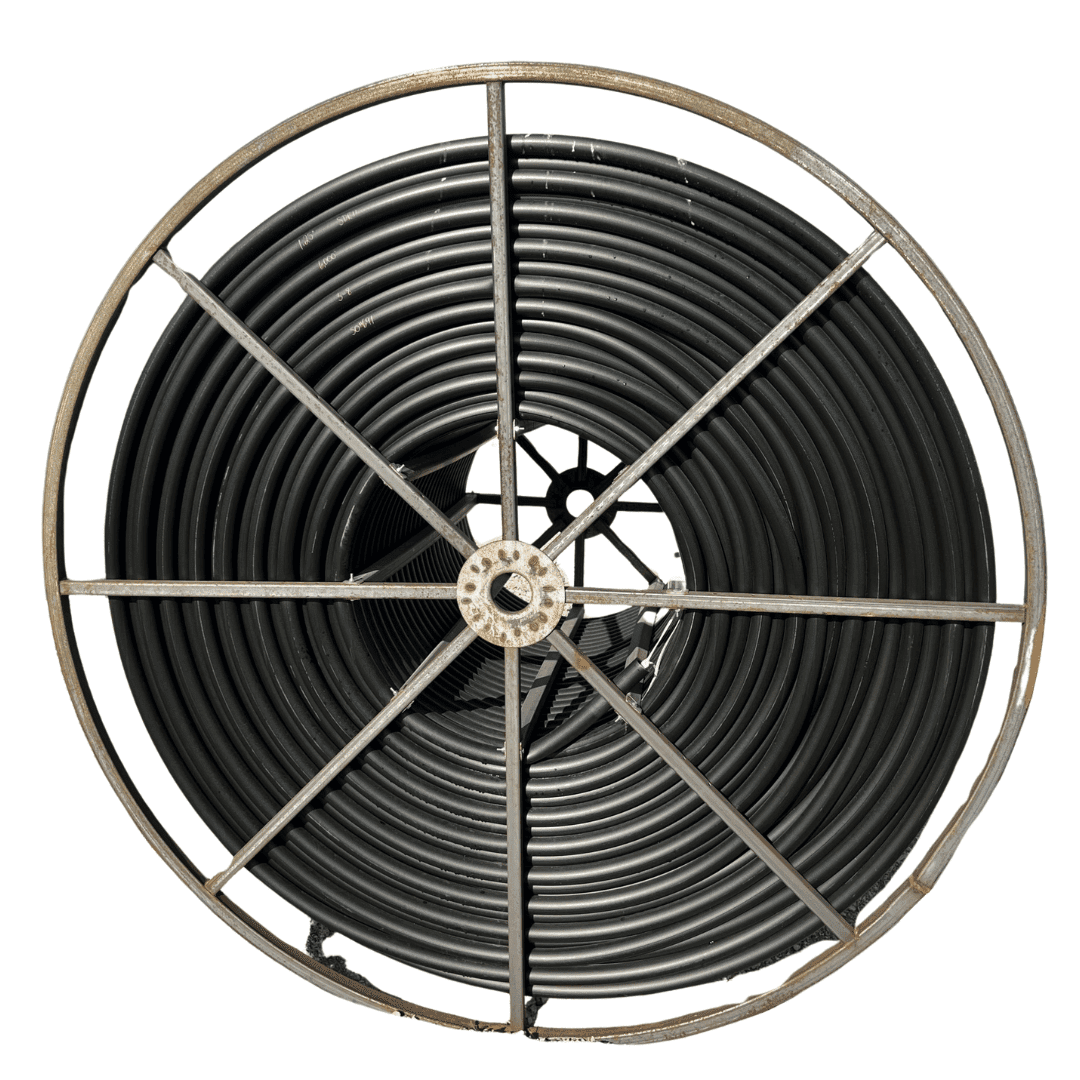

Polyethylene HDPE Water Pipe (SDR11 200 PSI) - Reel
Polyethylene HDPE Water Pipe (SDR11 200 PSI) - Reel
Shipping: Ships to all 48 contiguous US states. Freight cost is calculated at checkout — enter your shipping ZIP to see the exact total before you order. Transit time is typically 3–5 business days. Questions? Contact us.
Heads up: Inventory on this reel varies. Please contact us to confirm current availability before placing your order.
Need specs? See our HDPE pipe technical reference — SDR ratings, IPS-OD vs. CTS-OD sizing, ASTM/AWWA standards, and installation guidance.

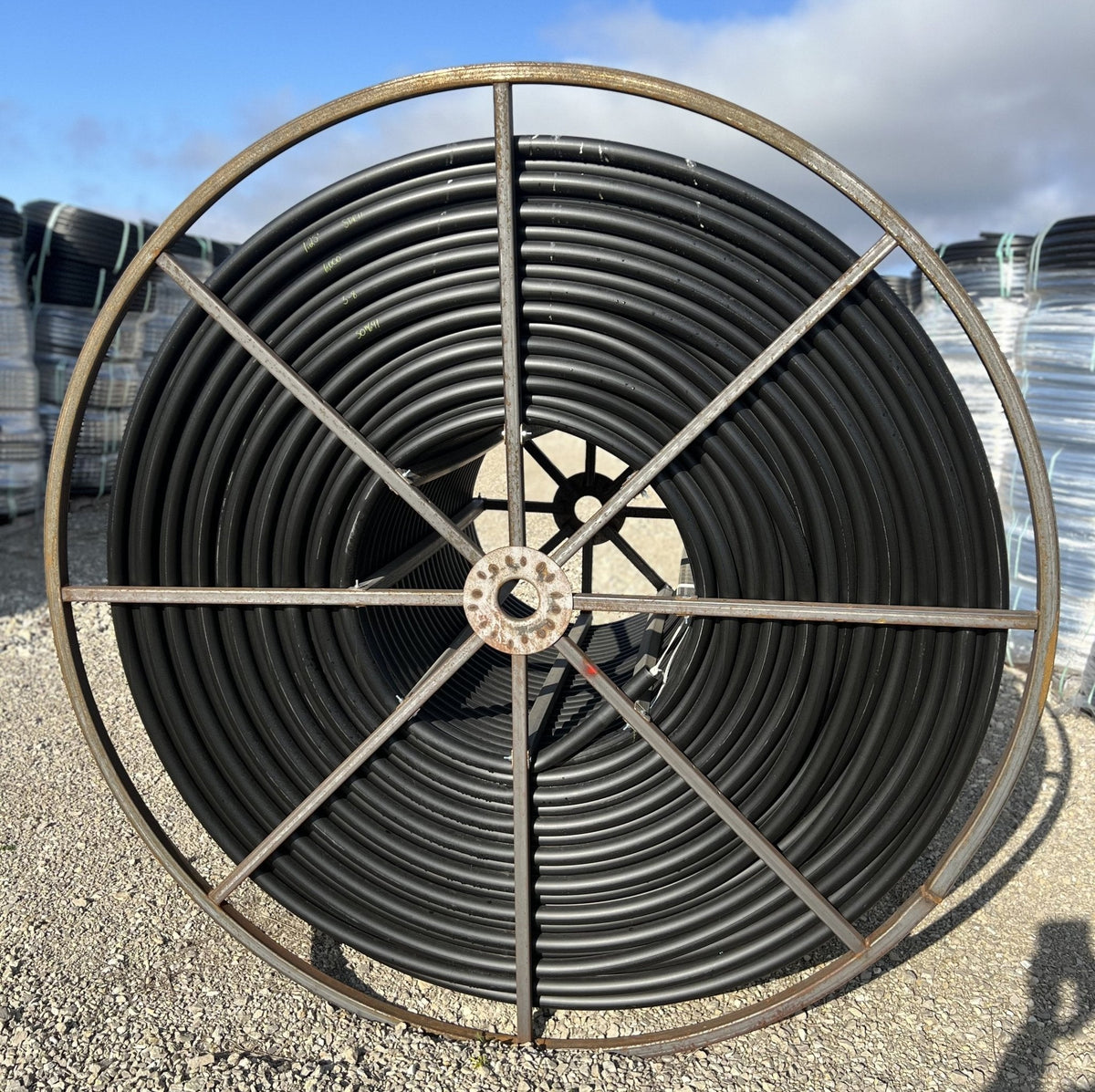

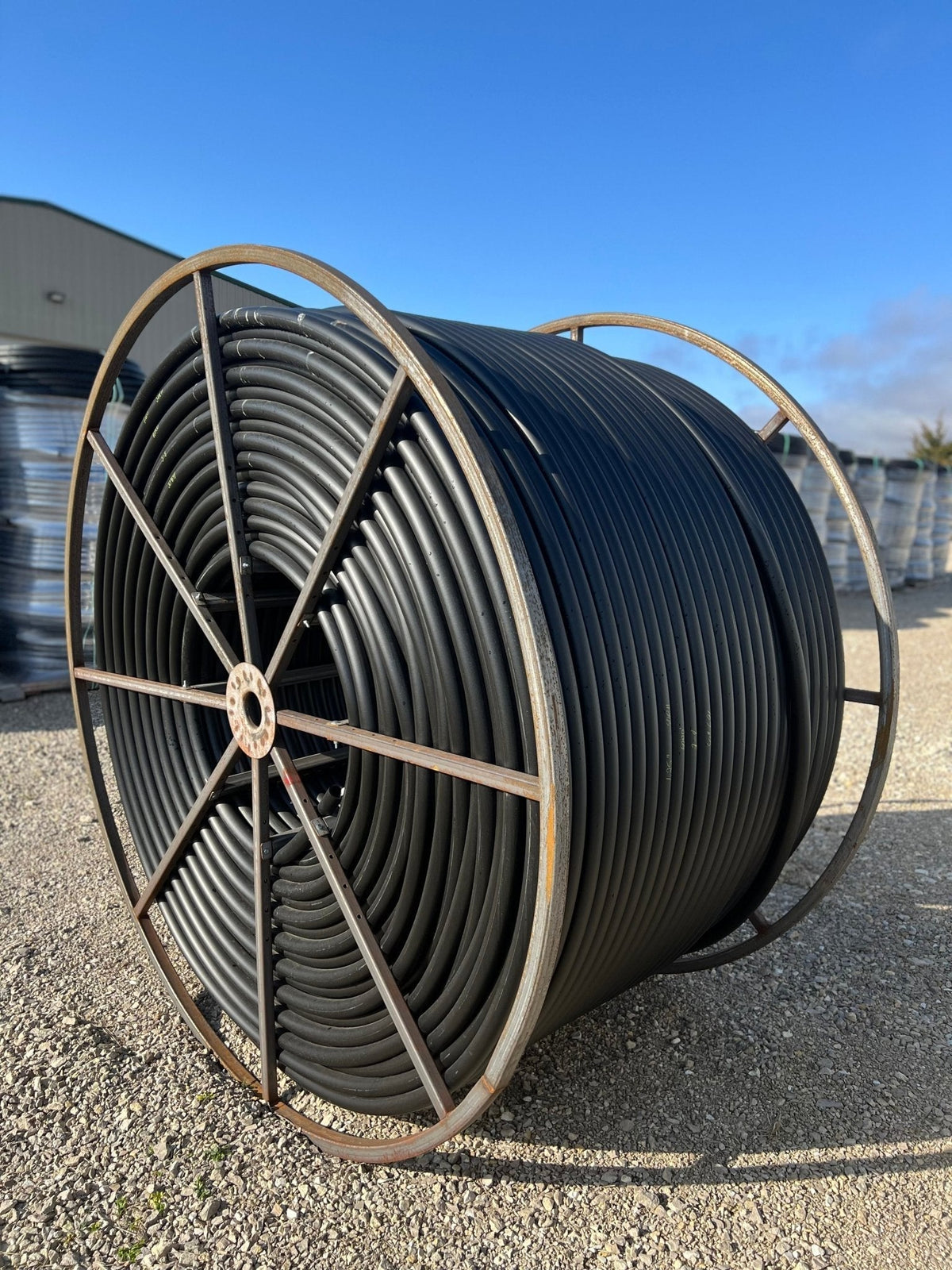

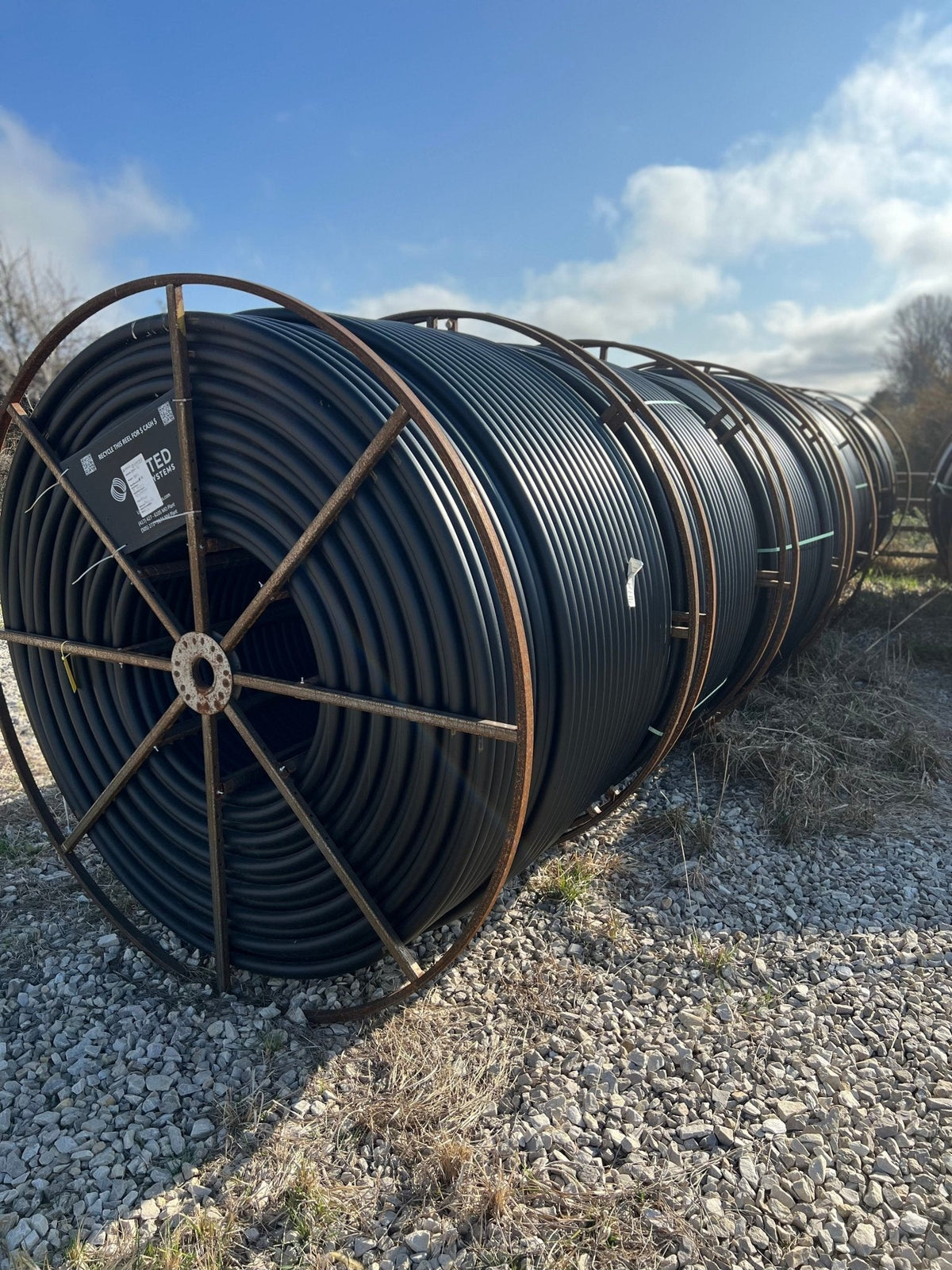

Polyethylene HDPE Water Pipe – SDR 11, 200 PSI | Reel Format for Large-Scale Projects
HDPE pipe on reels is the preferred choice for contractors and ranchers running large-scale water projects with specialized burial equipment. The reel format allows for continuous runs of thousands of feet with minimal joints — reducing leak points and installation time significantly. Available in 1" through 2" diameters, all rated at 200 PSI with SDR 11 wall thickness.
Built from high-density polyethylene, this pipe resists corrosion, chemicals, and UV degradation. It's flexible enough to handle ground movement and freeze-thaw cycles, and approved for NRCS EQIP projects. Whether you're running a new mainline across hundreds of acres or building out a multi-paddock distribution system, HDPE on a reel gets it done faster and with fewer connections.
Pipe Specifications — SDR 11, 200 PSI IPS-OD
| Size | OD | Wall Thickness | ID | Pressure Rating | Approx. Reel Weight |
|---|---|---|---|---|---|
| 1" | 1.315" | 0.120" | 1.075" | 200 PSI @ 73°F | ~2,145 lbs (10,000 ft) |
| 1-1/4" | 1.660" | 0.151" | 1.358" | 200 PSI @ 73°F | ~2,020 lbs (6,000 ft) |
| 1-1/2" | 1.900" | 0.173" | 1.554" | 200 PSI @ 73°F | ~2,020 lbs (2,500 ft) |
| 2" | 2.375" | 0.216" | 1.943" | 200 PSI @ 73°F | ~1,800 lbs (2,500 ft) |
Flow Rate Reference
| Pipe Size | @ 2 ft/sec (GPM) | @ 4 ft/sec (GPM) | @ 6 ft/sec (GPM) | Typical Use |
|---|---|---|---|---|
| 1" | ~5 GPM | ~10 GPM | ~15 GPM | Small pasture lateral lines |
| 1-1/4" | ~8 GPM | ~16 GPM | ~24 GPM | Multi-trough lateral distribution |
| 1-1/2" | ~10 GPM | ~20 GPM | ~30 GPM | Sub-main or high-demand lateral |
| 2" | ~15 GPM | ~30 GPM | ~45 GPM | Main distribution line |
Compatible Fittings — Philmac Compression IPS-OD (Products We Carry)
We sell and recommend Philmac Compression Fittings (IPS-OD) for use with this SDR 11 IPS-OD pipe. Tool-free compression fittings — no insert stiffeners required on SDR 11.
| Fitting | Project Use |
|---|---|
| Philmac Coupling IPS-OD | Joining two pipe runs end-to-end; extending mainline across long distances |
| Philmac Repair Coupling (No Stop) IPS-OD | In-line repairs on existing pipe runs without cutting out a section |
| Philmac Reducing Coupling IPS-OD | Stepping down pipe size from mainline to lateral or distribution lines |
| Philmac Standard Elbow IPS-OD | 90° direction changes around terrain, buildings, or obstacles |
| Philmac Female Elbow IPS-OD | 90° direction change with female thread outlet for connecting valves or risers |
| Philmac Standard Tee IPS-OD | Splitting mainline into two equal branch runs; feeding multiple zones or tanks |
| Philmac Female Tee IPS-OD | Branching off mainline with a female thread outlet for valves, hydrants, or meters |
| Philmac Reducing Standard Tee IPS-OD | Tapping a smaller lateral line off the mainline without reducing main flow |
| Philmac Male Adapter IPS-OD | Connecting HDPE pipe to female-threaded pumps, valves, pressure tanks, or equipment |
| Philmac Female Adapter IPS-OD | Connecting HDPE pipe to male-threaded equipment, filter housings, or hydrants |
| Philmac End Cap IPS-OD | Terminating a pipe run; pressure testing a line before final connection |
| Philmac Shut Off Ball Valve Tee Handle IPS-OD | Isolation and shutoff points along mainline or at zone entries |
| Philmac Joint Kit IPS-OD | Replacement nut and grab ring for remaking or servicing existing Philmac connections |
| Philmac PVC Grip Ring IPS-OD | Replacement grip ring for securing pipe in compression fitting body |
Common Applications
- Large Ranch Water Systems — Continuous runs across hundreds of acres with minimal joints
- Contractor Burial Projects — Reel format designed for plow-in or trencher installation equipment
- NRCS EQIP Projects — Approved for cost-share agricultural water programs
- Multi-Paddock Distribution — Main and sub-main lines feeding multiple water points
- Stock Tank Supply Lines — Long continuous runs to remote tanks and troughs
Freight item — call to confirm availability and schedule delivery. Reel sizes: 84"x48"x84" or 66"x48"x66".
