Woven Wire – 12.5g Fixed Knot Hi-Tensile, 13/48/6, 330'

Fixed Knot Hi-Tensile Woven Wire — 13 Line Wires, 48" Tall, 6" Stay Spacing, 330-Foot Roll

The Fixed Knot is the gold standard of woven wire construction — a separate knot wire wrapped and crimped tightly around each line-and-stay intersection, locking the two together so the joint can't slip, shift, or work loose under pressure. This 12.5 gauge hi-tensile Fixed Knot woven wire in the 13/48/6 configuration combines that knot rigidity with hi-tensile wire's strength and spring memory for a fence that holds its geometry, holds its tension, and holds its animals across long runs.

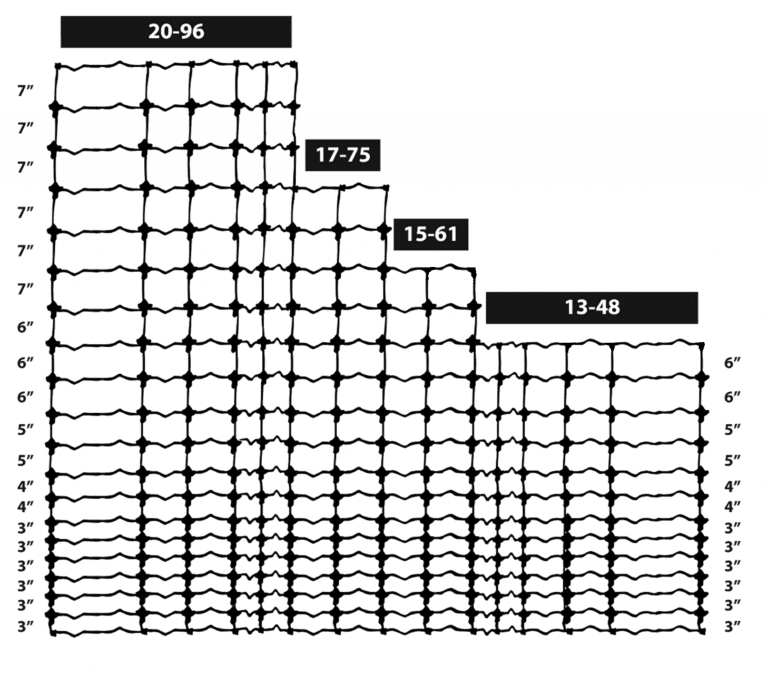

The 13/48/6 designation means 13 horizontal line wires, 48 inches of total height, and 6-inch stay spacing — well-suited for cattle, horses, and large livestock where tight predator-exclusion spacing isn't required. The 330-foot roll covers serious ground on large perimeter and cross-fence projects.

Features

Fixed Knot Construction: A separate knot wire wrapped and crimped tightly around each line-and-stay intersection — the joint can't slip, shift, or work loose under livestock pressure. Not welded, not hinged — mechanically locked.

12.5 Gauge Hi-Tensile Wire: High-strength wire holds tension across long spans, springs back after impact, and outlasts soft wire alternatives.

13/48/6 Configuration: 13 line wires / 48" height / 6" stay spacing — ideal for cattle, horses, and large livestock containment on permanent fence lines.

330-Foot Roll: Covers serious ground on large perimeter and cross-fence projects — fewer roll changes, faster installation.

Galvanized Corrosion Protection: Long-term rust resistance for permanent outdoor fence installations. Coating class TBC — confirm Class 3 or Galfan spec with Bull Barn for full specification.

Specifications

• SKU: F-WIR-01027
• Knot Style: Fixed Knot
• Wire Gauge: 12.5 gauge hi-tensile
• Tensile Strength: TBC — confirm 170,000 or 200,000 PSI with Bull Barn
• Configuration: 13/48/6 (13 line wires / 48" height / 6" stay spacing)
• Roll Length: 330 feet
• Roll Weight: 243 lbs
• Coating: Galvanized — class TBC (Class 3 or Galfan)

Fixed Knot rigidity, hi-tensile strength, 330 feet of coverage — the 13/48/6 is the workhorse woven wire for large livestock operations building fence to last.
